Description-Overview of the Pi-Tron REV003 Demoboard
Serial Interfaces
You need an additional adapter to translate the 3.3V-UART signals (provided on the Mini-USB port) to USB.
Pi-Tron | Used as | Accessible via | Connector |
---|---|---|---|
uart0 | Console; TTL; RS485 | /dev/ttyAMA0 /dev/serial0 |
X800 |
uart1 | Console; TTL; RS485; RS232 | /dev/ttyS0 /dev/serial1 |
X900 |
IOs
Four digital inputs/outputs (either or) are available. If used as output the state can be read back from the associated input.
The table below shows number and function of available GPIOs.
The Input/Output Voltage are coupled with the Power-Supply-Voltage. Normaly 24V. The maximum output current of each Port is 110mA depending on the power supply. On the Inputs all values over 6V are high and all values under 4V are low.
Name | direction | Accessible via | Connector |
---|---|---|---|
dout1 | output | GPIO44 |
X19_DIO1 |
din1 | input | GPIO45 |
X19_DIO1 |
dout2 | output | GPIO35 |
X19_DIO2 |
din2 | input | GPIO43 |
X19_DIO2 |
dout3 | output | GPIO34 |
X19_DIO3 |
din3 | input | GPIO31 |
X19_DIO3 |
dout4 | output | GPIO29 |
X19_DIO4 |
din4 | input | GPIO28 |
X19_DIO4 |
Display Interfaces
The Pi-Tron has a HDMI-Interface with an micro-HDMI-Connector. Also there can be used the 40Pol-Header as RGB-Interface.
Ethernet
Name | Connector | Linux device |
---|---|---|
Ethernet 1 | X600 | eth0 |
Ethernet 2 | X700 | eth1 |
USB
The connector X601 is including the two USB ports "top" and "bottom". Both ports are configured as USB Host.
Appendix
Part number for the Mating connectors
Name | Connector | Manufacturer | Ord.No. | |
---|---|---|---|---|
Power-connector | X3 | PHOENIX CONTACT | FMC 1,5/ 2-ST-3,5 BK | 18 26 68 0 |
RS232-connector | X15 | PHOENIX CONTACT | DFMC 0,5/ 4-ST-2,54 | 18 44 59 4 |
RS485/CAN-connector | X18 | PHOENIX CONTACT | DFMC 0,5/ 4-ST-2,54 | 18 44 59 4 |
DIO-connector | X19 | PHOENIX CONTACT | DFMC 0,5/ 4-ST-2,54 | 18 44 59 4 |
micro-HDMI-connector | X500 | Typ D |

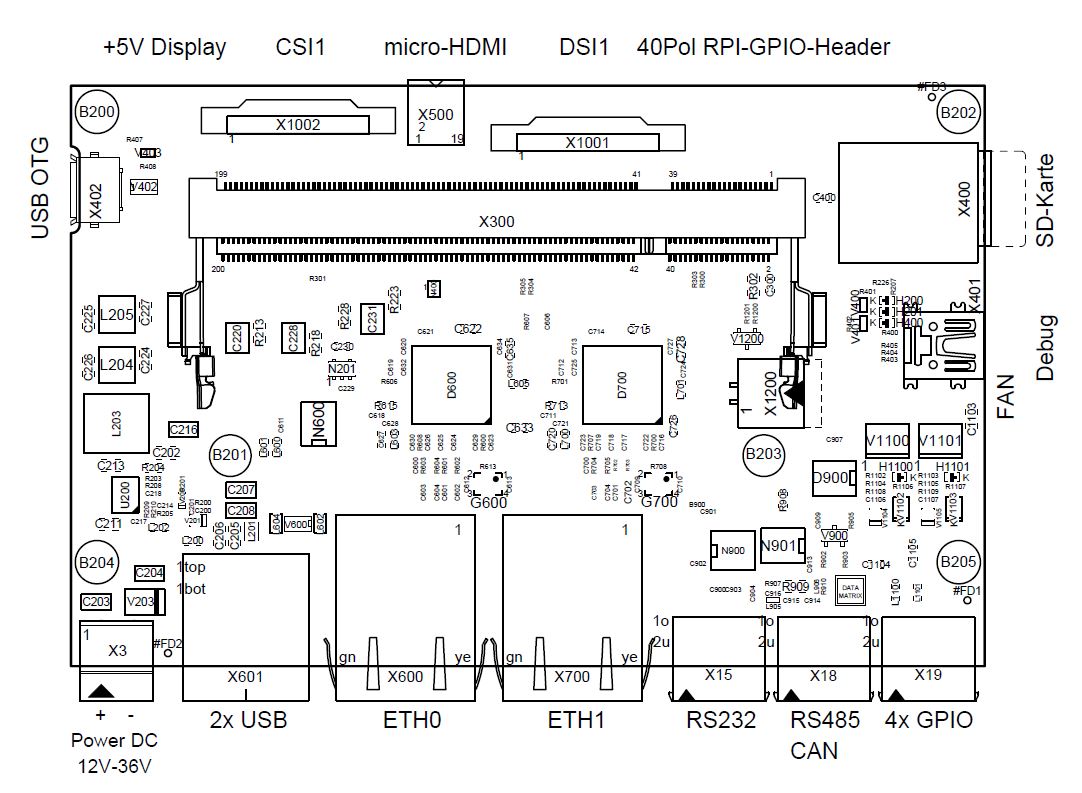

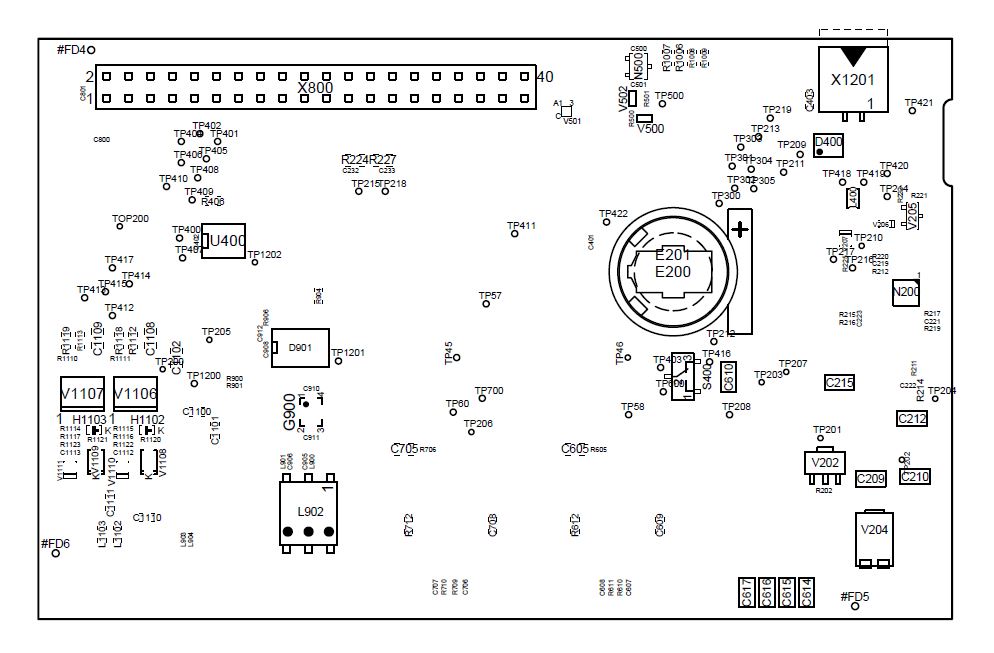

Board Layout REV003

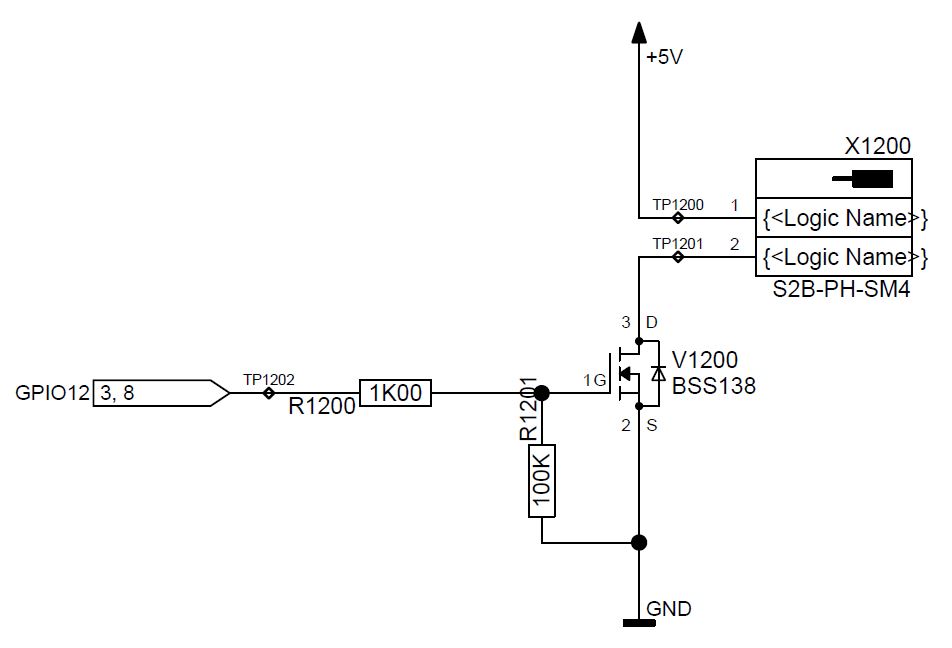

Connector Pinouts REV003

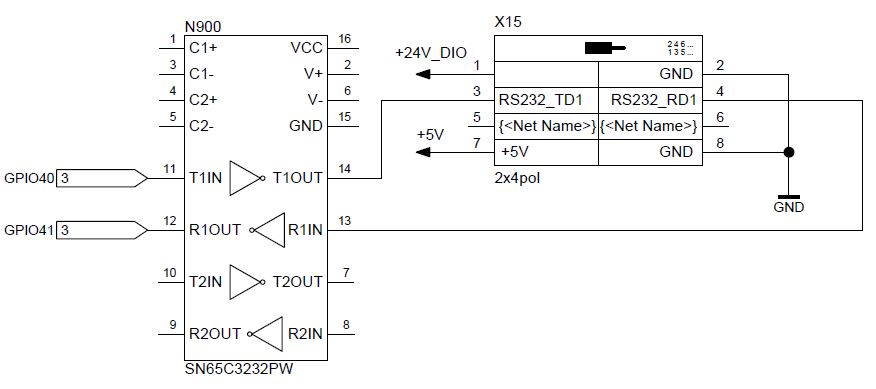

RS232

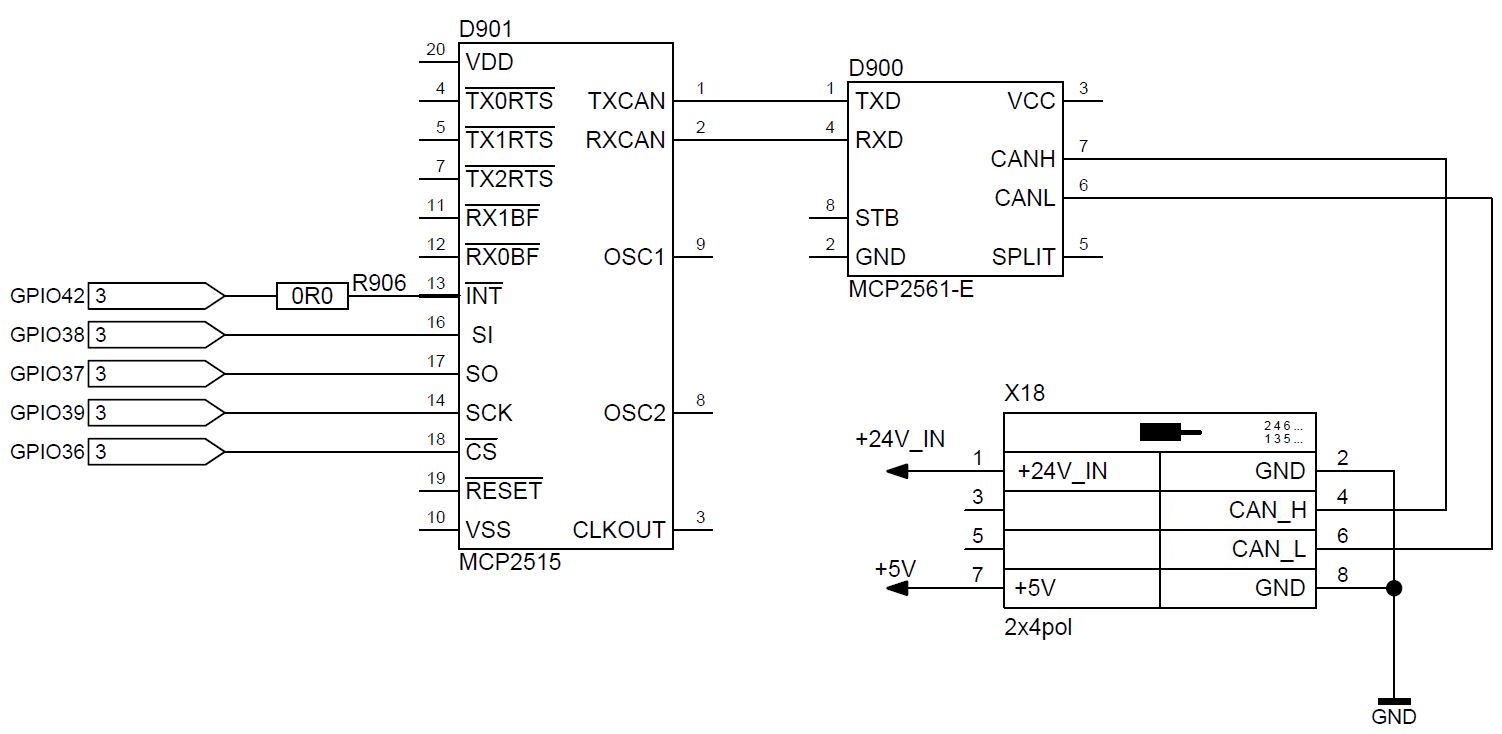

SPI to CAN
(Same Connector as RS485)

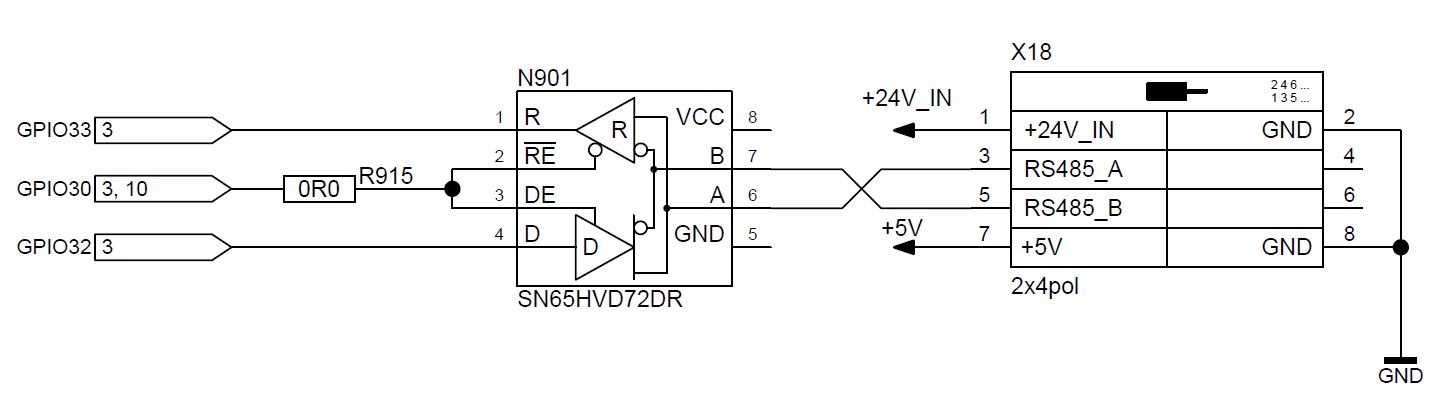

RS485
(Same Connector as CAN)

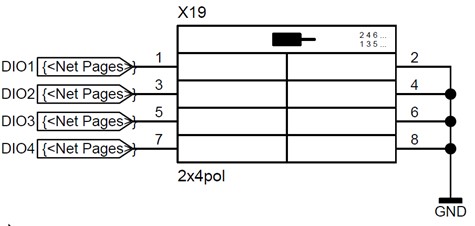

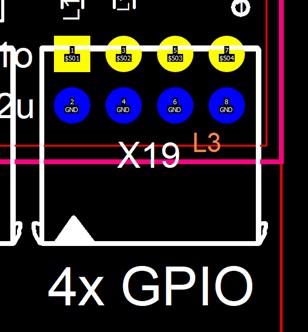

DIO

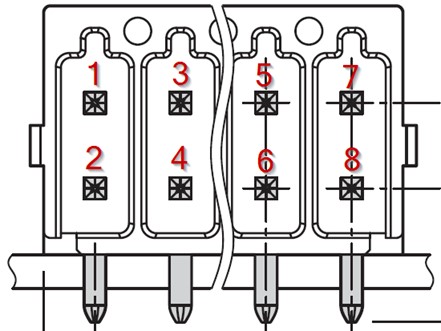

Pinout

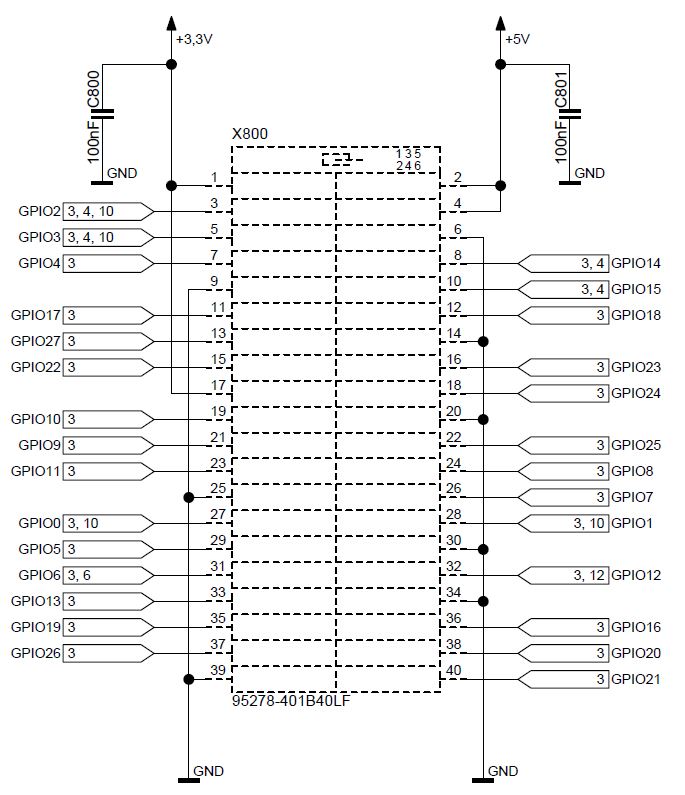

40Pol RPI GPIO HEADER
